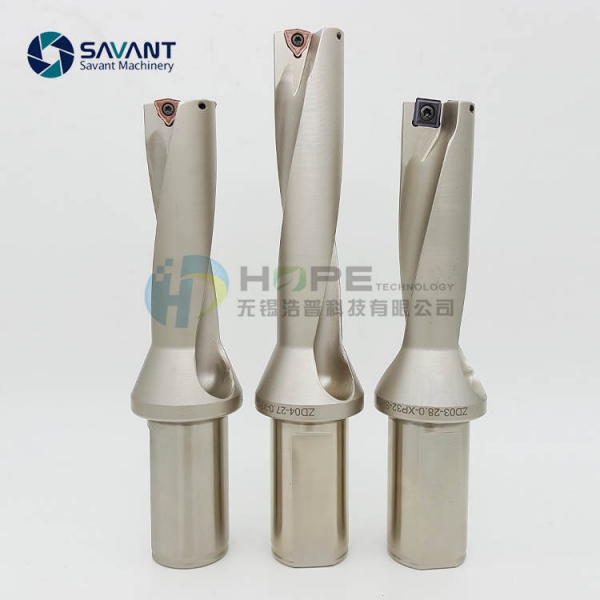

SAVANT快速钻

去毛刺|倒角|浮动铰刀柄|滚压刀

快速钻又名：U钻、潜孔钻、暴力钻、喷水钻、内冷钻、扩孔钻。在加工中心或者数控车床使用，优点是加工效率高，使用简单，成本相对较低。

1.加工效率一般是麻花钻的2-3倍。

2.U钻可直接在工件上加工，无需中心钻打引导孔。

3.刀体前端装有可更换的刀片，降低了使用的成本。

去毛刺|倒角|浮动铰刀柄|滚压刀

SAVANT赛万特快速钻型号规格：

多功能钻杆

多功能系列产品

去毛刺|倒角|浮动铰刀柄|滚压刀

车削、镗削、钻削功能，使用一种刀具

节约安装时间，缩短节拍

减少刀具使用效果，节约刀具成本

应用方式

去毛刺|倒角|浮动铰刀柄|滚压刀

传统方式

去毛刺|倒角|浮动铰刀柄|滚压刀

型号	D	d	L1	L	适用型号	螺丝	扳手
TCAP-08R/L-3.0DN	8	12	24	75	XCMT 04 01 04	M1.8*3.5	T6
TCAP-09R/L-3.0DN	9	12	27	83	XCMT 05 02 04	M2*5	T6
TCAP-10R/L-3.0DN	10	12	30	85	XCMT 05 02 04	M2*5	T6
TCAP-11R/L-3.0DN	11	16	33	92	XCMT 06 02 04	M2.2*5	T6
TCAP-12R/L-3.0DN	12	16	36	95	XCMT 06 02 04	M2.2*5	T6
TCAP-13R/L-3.0DN	13	16	39	100	XCMT 07 03 04	M2.5*6.5	T8
TCAP-14R/L-3.0DN	14	16	42	101	XCMT 07 03 04	M2.5*6.5	T8
TCAP-08R/L-2.25DN	8	12	18	69	XCMT 04 01 04	M1.8*3.5	T6
TCAP-09R/L-2.25DN	9	12	20.5	76	XCMT 05 02 04	M2*5	T6
TCAP-10R/L-2.25DN	10	12	22.5	78	XCMT 05 02 04	M2*5	T6
TCAP-11R/L-2.25DN	11	16	25	84	XCMT 06 02 04	M2.2*5	T6
TCAP-12R/L-2.25DN	12	16	27	86	XCMT 06 02 04	M2.2*5	T6
TCAP-13R/L-2.25DN	13	16	29.5	91	XCMT 07 03 04	M2.5*6.5	T8
TCAP-14R/L-2.25DN	14	16	31.5	91	XCMT 07 03 04	M2.5*6.5	T8

钻头公差与孔径公差

去毛刺|倒角|浮动铰刀柄|滚压刀

钻头直径		Φ12-Φ19	Φ30-Φ45	Φ46-Φ60
2D~3D	钻头公差（ΦD）	0~-0.15	0~-0.15	0~-0.15
2D~3D	孔公差	-0.1~+0.2	-0.1~+0.25	-0.1~+0.28
4D`5D	钻头公差（ΦD）	0~-0.15	0~-0.15	0~-0.15
4D`5D	孔公差	-0.05~+0.25	-0.05~+0.3	-0.05~+0.33

ZD02-WC刀片


型号	尺寸					刀片		备件
型号	L1	L2	L	D	d	刀片型号	刀片数量	螺丝	扳手
ZD02-14.0-XP25	33	56	112	14	25	WCMT030208	2	M2.5*6.5	T8
ZD02-15.0-XP25	35	56	115	15			2
ZD02-16.0-XP25	37	56	118	16			2
ZD02-17.0-XP25	39	56	120	17			2
ZD02-18.0-XP25	41	56	122	18			2
ZD02-19.0-XP25	43	56	124	19			2
ZD02-20.0-XP25	45	56	126	20			2
ZD02-21.0-XP25	47	56	128	21		WCMT040208	2
ZD02-22.0-XP25	49	56	130	22			2
ZD02-23.0-XP25	51	56	132	23			2
ZD02-24.0-XP25	53	56	134	24			2
ZD02-25.0-XP32	55	60	140	25	32		2
ZD02-26.0-XP32	57	60	142	26		WCMT050308	2	M3*7	T10
ZD02-27.0-XP32	59	60	144	27			2
ZD02-28.0-XP32	61	60	146	28			2
ZD02-29.0-XP32	63	60	148	29			2
ZD02-30.0-XP32	65	60	150	30			2
ZD02-31.0-XP32	67	60	152	31			2
ZD02-32.0-XP32	69	60	154	32		WCMT06T308	2	M3.5*8	T15
ZD02-33.0-XP32	71	60	156	33			2
ZD02-34.0-XP32	73	60	158	34			2
ZD02-35.0-XP32	75	60	160	35			2
ZD02-36.0-XP32	77	60	162	36			2
ZD02-37.0-XP32	79	60	164	37			2
ZD02-38.0-XP32	81	60	166	38			2
ZD02-39.0-XP32	83	60	168	39			2
ZD02-40.0-XP32	85	60	177	40			2
ZD02-41.0-XP32	87	60	179	41			2
ZD02-42.0-XP32	89	60	181	42			2
ZD02-43.0-XP40	91	65	183	43	40	WCMT080212	2	M4*10	T15
ZD02-44.0-XP40	93	65	185	44	40	WCMT080212	2	M4*10	T15
ZD02-45.0-XP40	95	65	187	45	40	WCMT080212	2	M4*10	T15
ZD02-46.0-XP40	97	65	189	46			2
ZD02-47.0-XP40	99	65	191	47			2
ZD02-48.0-XP40	101	65	193	48			2
ZD02-49.0-XP40	103	65	195	49			2
ZD02-50.0-XP40	105	65	197	50			2
ZD02-51.0-XP40	107	65	199	51			2
ZD02-52.0-XP40	109	65	201	52			2
ZD02-53.0-XP40	111	65	203	53			2
ZD02-54.0-XP40	113	65	205	54			2
ZD02-55.0-XP40	115	65	207	55			2
ZD02-56.0-XP40	117	65	209	56			2
ZD02-57.0-XP40	119	65	211	57			2
ZD02-58.0-XP40	121	65	213	58		WCMT06T308	4	M3.5*8
ZD02-59.0-XP40	123	65	215	59			4
ZD02-60.0-XP40	125	65	217	60			4
ZD02-61.0-XP40	127	65	211	61			4
ZD02-62.0-XP40	129	65	213	62			4
ZD02-63.0-XP40	131	65	215	63			4
ZD02-64.0-XP40	133	65	217	64			4
ZD02-65.0-XP40	135	65	219	65			4

快速钻加工相关参数计算方法

去毛刺|倒角|浮动铰刀柄|滚压刀

ZD03-WC刀片


型号	尺寸					刀片		备件
型号	L1	L2	L	D	d	刀片型号	刀片数量	螺丝	扳手
ZD03-14.0-XP25	47	56	128	14	25	WCMT030208	2	M2.5*6.5	T8
ZD03-14.5-XP25	48.5	56	130	14.5			2
ZD03-15.0-XP25	50	56	130	15			2
ZD03-15.5-XP25	51.5	56	132	15.5			2
ZD03-16.0-XP25	53	56	134	16			2
ZD03-16.5-XP25	54.5	56	136	16.5			2
ZD03-17.0-XP25	56	56	137	17			2
ZD03-17.5-XP25	57.5	56	139	17.5			2
ZD03-18.0-XP25	59	56	140	18			2
ZD03-18.5-XP25	60.5	56	142	18.5			2
ZD03-19.0-XP25	62	56	143	19			2
ZD03-19.5-XP25	63.5	56	145	19.5			2
ZD03-20.0-XP25	65	56	146	20			2
ZD03-20.5-XP25	66.5	56	147	20.5			2
ZD03-21.0-XP25	68	56	149	21		WCMT040208	2
ZD03-21.5-XP25	69.5	56	150.5	21.5			2
ZD03-22.0-XP25	71	56	152	22			2
ZD03-22.5-XP25	72.5	56	153.2	22.5			2
ZD03-23.0-XP25	74	56	155	23			2
ZD03-23.5-XP25	75.5	56	156.5	23.5			2
ZD03-24.0-XP25	77	56	158	24			2
ZD03-24.5-XP25	78.5	56	159	24.5			2
ZD03-25.0-XP32	80	60	170	25	32		2
ZD03-25.5-XP32	81.5	60	171.5	25.5			2
ZD03-26.0-XP32	83	60	173	26		WCMT050208	2	M3*7	T10
ZD03-26.5-XP32	84.5	60	174.5	26.5			2
ZD03-27.0-XP32	86	60	176	27			2
ZD03-27.5-XP32	87.5	60	177.5	27.5			2
ZD03-28.0-XP32	89	60	179	28			2
ZD03-28.5-XP32	90.5	60	180.5	28.5			2
ZD03-29.0-XP32	92	60	182	29	32	WCMT050208	2	M3*7	T10
ZD03-29.5-XP32	93.5	60	183.5	29.5			2
ZD03-30.0-XP32	95	60	185	30			2
ZD03-30.5-XP32	96.5	60	186.5	30.5			2
ZD03-31.0-XP32	98	60	188	31			2
ZD03-31.5-XP32	99.5	60	189.5	31.5			2
ZD03-32.0-XP32	101	60	191	32			2
ZD03-32.5-XP32	102.5	60	191	32.5			2
ZD03-33.0-XP32	104	60	195	33		WCMT06T308	2	M3.5*8	T15
ZD03-33.5-XP32	105.5	60	195	33.5			2
ZD03-34.0-XP32	107	60	199	34			2
ZD03-34.5-XP32	108.5	60	195	34.5			2
ZD03-35.0-XP32	110	60	199	35			2
ZD03-35.5-XP32	111.5	60	199	35.5			2
ZD03-36.0-XP32	113	60	200	36			2
ZD03-36.5-XP32	114.5	60	200	36.5			2
ZD03-37.0-XP32	116	60	202	37			2
ZD03-37.5-XP32	117.5	60	203	37.5			2
ZD03-38.0-XP32	119	60	204	38			2
ZD03-38.5-XP32	120.5	60	205	38.5			2
ZD03-39.0-XP32	122	60	214	39			2	M3.5*8
ZD03-39.5-XP32	123.5	60	216	39.5			2
ZD03-40.0-XP32	125	60	215	40			2
ZD03-41.0-XP32	128	60	218	41			2
ZD03-42.0-XP32	131	60	221	42			2
ZD03-43.0-XP40	134	65	224	43	40	WCMT080412	2	M4*10
ZD03-44.0-XP40	137	65	227	44			2
ZD03-45.0-XP40	140	65	230	45			2
ZD03-46.0-XP40	143	65	233	46			2
ZD03-47.0-XP40	146	65	236	47			2
ZD03-48.0-XP40	149	65	239	48			2
ZD03-49.0-XP40	152	65	242	49			2
ZD03-50.0-XP40	155	65	245	50			2
ZD03-51.0-XP40	158	65	251	51			2
ZD03-52.0-XP40	161	65	254	52			2
ZD03-53.0-XP40	164	65	257	53			2
ZD03-54.0-XP40	167	65	257	54			2
ZD03-55.0-XP40	170	65	257	55			2
ZD03-56.0-XP40	173	65	270	56			2
ZD03-57.0-XP40	176	65	273	57			2
ZD03-58.0-XP40	179	65	276	58		WCMT06T308	4	M3.5*8
ZD03-59.0-XP40	182	65	279	59			4
ZD03-60.0-XP40	185	65	282	60			4

ZD04-WC刀片


型号	尺寸					刀片		备件	扳手
型号	L1	L2	L	D	d	刀片型号	刀片数量	螺丝	扳手
ZD04-14.0-XP25	61	56	139	14	25	WCMT030208	2	M2.5*6.5	T8
ZD04-14.5-XP25	63	56	141	14.5			2
ZD04-15.0-XP25	65	56	143	15			2
ZD04-15.5-XP25	67	56	145	15.5			2
ZD04-16.0-XP25	69	56	147	16			2
ZD04-16.5-XP25	71	56	149	16.5			2
ZD04-17.0-XP25	73	56	151	17			2
ZD04-17.5-XP25	75	56	153	17.5			2
ZD04-18.0-XP25	77	56	155	18			2
ZD04-18.5-XP25	79	56	157	18.5			2
ZD04-19.0-XP25	81	56	158	19			2
ZD04-19.5-XP25	83	56	160	19.5			2
ZD04-20.0-XP25	85	56	162	20			2
ZD04-20.5-XP25	87	56	164	20.5			2
ZD04-21.0-XP25	89	56	166	21		WCMT040208	2
ZD04-21.5-XP25	91	56	168	21.5			2
ZD04-22.0-XP25	93	56	169	22			2
ZD04-22.5-XP25	95	56	171	22.5			2
ZD04-23.0-XP25	97	56	173	23			2
ZD04-23.5-XP25	99	56	175	23.5			2
ZD04-24.0-XP25	101	60	178	24			2
ZD04-24.5-XP25	103	60	180	24.5			2
ZD04-25.0-XP32	105	60	182	25	32		2
ZD04-25.5-XP32	107	60	184	25.5			2
ZD04-26.0-XP32	109	60	195	26		WCMT050308	2	M3*7	T10
ZD04-26.5-XP32	111	60	197	26.5			2
ZD04-27.0-XP32	113	60	198	27			2
ZD04-27.5-XP32	115	60	200	27.5			2
ZD04-28.0-XP32	117	60	201	28			2
ZD04-28.5-XP32	119	60	203	28.5			2
ZD04-29.0-XP32	121	60	204	29			2
ZD04-29.5-XP32	123	60	206	29.5			2
ZD04-30.0-XP32	125	60	212	30	32	WCMT050308	2	M3*7	T10
ZD04-30.5-XP32	127	60	214	30.5			2
ZD04-31.0-XP32	129	60	215	31			2
ZD04-31.5-XP32	131	60	217	31.5			2
ZD04-32.0-XP32	133	60	219	32			2
ZD04-32.5-XP32	135	60	221	32.5			2
ZD04-33.0-XP32	137	60	224	33		WCMT06T308	2		T15
ZD04-33.5-XP32	139	60	226	33.5			2
ZD04-34.0-XP32	141	60	228	34			2
ZD04-34.5-XP32	143	60	230	34.5			2
ZD04-35.0-XP32	145	60	231	35			2
ZD04-35.5-XP32	147	60	233	35.5			2
ZD04-36.0-XP32	149	60	234	36			2
ZD04-36.5-XP32	151	60	236	36.5			2
ZD04-37.0-XP32	153	60	237	37			2
ZD04-37.5-XP32	155	60	239	37.5			2
ZD04-38.0-XP32	157	60	240	38			2
ZD04-38.5-XP32	159	60	242	38.5			2
ZD04-39.0-XP32	161	60	243	39			2	M3.5*8
ZD04-39.5-XP32	163	60	248	39.5			2
ZD04-40.0-XP32	165	60	256	40			2
ZD04-41.0-XP32	169	60	259	41			2
ZD04-42.0-XP32	173	60	262	42			2
ZD04-43.0-XP40	177	65	265	43	40	WCMT080412	2	M4*10
ZD04-44.0-XP40	181	65	268	44			2
ZD04-45.0-XP40	185	65	275	45			2
ZD04-46.0-XP40	189	65	280	46			2
ZD04-47.0-XP40	193	65	285	47			2
ZD04-48.0-XP40	197	65	288	48			2
ZD04-49.0-XP40	201	65	292	49			2
ZD04-50.0-XP40	205	65	296	50			2
ZD04-51.0-XP40	209	65	299	51			2
ZD04-52.0-XP40	213	65	302	52			2
ZD04-53.0-XP40	217	65	305	53			2
ZD04-54.0-XP40	221	65	308	54			2
ZD04-55.0-XP40	225	65	311	55			2
ZD04-56.0-XP40	229	65	314	56			2
ZD04-57.0-XP40	233	65	317	57			2
ZD04-58.0-XP40	237	65	320	58		WCMT06T308	4	M3.5*8
ZD04-59.0-XP40	241	65	323	59			4
ZD04-60.0-XP40	245	65	326	60			4

ZD03-SP刀片


型号	刀片	尺寸						备件
型号	适用刀片	L1	L2	L	D	d	刀片数量	螺丝	扳手
ZD03-13.0-XP25-SP05	SPMG050204
ZD03-13.5-XP25-SP05
ZD03-14.0-XP25-SP05		47	56	128	14	25	2	M2.5*6.5	T8
ZD03-14.5-XP25-SP05		48.5	56	130	14.5		2
ZD03-15.0-XP25-SP05		50	56	130	15		2
ZD03-15.5-XP25-SP06	SPMG060204	51.5	56	132	15.5		2
ZD03-16.0-XP25-SP06		53	56	134	16		2
ZD03-16.5-XP25-SP06		54.5	56	136	16.5		2
ZD03-17.0-XP25-SP06		56	56	137	17		2
ZD03-17.5-XP25-SP06		57.5	56	139	17.5		2
ZD03-18.0-XP25-SP06		59	56	140	18		2
ZD03-18.5-XP25-SP06		60.5	56	142	18.5		2
ZD03-19.0-XP25-SP06		62	56	143	19		2
ZD03-19.5-XP25-SP06		63.5	56	145	19.5		2
ZD03-20.0-XP25-SP06		65	56	146	20		2
ZD03-20.5-XP25-SP06		66.5	56	147	20.5		2
ZD03-21.0-XP25-SP06		68	56	149	21		2
ZD03-21.5-XP25-SP06		69.5	56	151	21.5		2
ZD03-22.0-XP25-SP07	SPMG07T308	71	56	152	22		2
ZD03-22.5-XP25-SP07		72.5	56	153	22.5		2
ZD03-23.0-XP25-SP07		74	56	155	23		2
ZD03-23.5-XP25-SP07		75.5	56	157	23.5		2
ZD03-24.0-XP25-SP07		77	56	158	24		2
ZD03-24.5-XP25-SP07		78.5	56	159	24.5		2
ZD03-25.0-XP32-SP07		80	60	170	25	32	2
ZD03-25.5-XP32-SP07	SPMG07T308	81.5	60	172	25.5		2
ZD03-26.0-XP32-SP07		83	60	173	26		2	M3*7	T10
ZD03-26.5-XP32-SP07		84.5	60	175	26.5		2
ZD03-27.0-XP32-SP07		86	60	176	27		2
ZD03-27.5-XP32-SP07		87.5	60	178	27.5		2
ZD03-28.0-XP32-SP09	SPMG090408	89	60	179	28		2
ZD03-28.5-XP32-SP09	SPMG090408	90.5	60	181	28.5		2
ZD03-29.0-XP32-SP09	SPMG090408	92	60	182	29	32	2	M3*7	T10
ZD03-29.5-XP32-SP09		93.5	60	184	29.5		2
ZD03-30.0-XP32-SP09		95	60	185	30		2
ZD03-30.5-XP32-SP09		96.5	60	187	30.5		2
ZD03-31.0-XP32-SP09		98	60	188	31		2
ZD03-31.5-XP32-SP09		99.5	60	190	31.5		2
ZD03-32.0-XP32-SP09		101	60	191	32		2
ZD03-32.5-XP32-SP09		103	60	191	32.5		2
ZD03-33.0-XP32-SP09		104	60	195	33		2	M3.5*8	T15
ZD03-33.5-XP32-SP09		106	60	195	33.5		2
ZD03-34.0-XP32-SP11	SPMG110408	107	60	199	34		2
ZD03-34.5-XP32-SP11		109	60	195	34.5		2
ZD03-35.0-XP32-SP11		110	60	199	35		2
ZD03-35.5-XP32-SP11		112	60	199	35.5		2
ZD03-36.0-XP32-SP11		113	60	200	36		2
ZD03-36.5-XP32-SP11		115	60	200	36.5		2
ZD03-37.0-XP32-SP11		116	60	202	37		2
ZD03-37.5-XP32-SP11		118	60	203	37.5		2
ZD03-38.0-XP32-SP11	SPMG110408	119	60	204	38		2
ZD03-38.5-XP32-SP11		121	60	205	38.5		2
ZD03-39.0-XP32-SP11		122	60	214	39		2
ZD03-39.5-XP32-SP11		124	60	216	39.5		2
ZD03-40.0-XP32-SP11		125	60	215	40		2
ZD03-41.0-XP32-SP14	SPMG140512	128	60	218	41		2
ZD03-42.0-XP32-SP14		131	60	221	42		2
ZD03-43.0-XP40-SP14		134	65	224	43	40	2	M4*10
ZD03-44.0-XP40-SP14		137	65	227	44		2
ZD03-45.0-XP40-SP14		140	65	230	45		2
ZD03-46.0-XP40-SP14		143	65	233	46		2
ZD03-47.0-XP40-SP14		146	65	236	47		2
ZD03-48.0-XP40-SP07	SPMG09T308	149	65	239	48		2
ZD03-49.0-XP40-SP07		152	65	242	49		2
ZD03-50.0-XP40-SP07		155	65	245	50		2
ZD03-51.0-XP40-SP07		158	65	251	51		2
ZD03-52.0-XP40-SP09	SPMG090408	161	65	254	52		2
ZD03-53.0-XP40-SP09		164	65	257	53		2
ZD03-54.0-XP40-SP09		167	65	257	54		2
ZD03-55.0-XP40-SP09		170	65	257	55		2
ZD03-56.0-XP40-SP09		173	65	270	56		2
ZD03-57.0-XP40-SP09		176	65	273	57		2
ZD03-58.0-XP40-SP09		179	65	276	58		4	M3.5*8
ZD03-59.0-XP40-SP09		182	65	279	59		4
ZD03-60.0-XP40-SP09		185	65	282	60		4

盲孔尺寸说明

四边形刀片浅孔钻

去毛刺|倒角|浮动铰刀柄|滚压刀

等边不等角六边形浅孔钻

去毛刺|倒角|浮动铰刀柄|滚压刀

四边形和六边形组合刀片浅孔钻

去毛刺|倒角|浮动铰刀柄|滚压刀

偏心套/变径套

去毛刺|倒角|浮动铰刀柄|滚压刀

型号	尺寸（mm）
型号	D	D1	D2	L	L1
BJT-322062	49	20	32	62	5
BJT-322562	49	25	32	62	5
BJT-402065	58	20	40	65	6
BJT-402565	58	25	40	65	6
BJT-403265	58	32	40	65	6
BJT-502572	65	25	50	70	6
BJT-503272	65	32	50	70	6
BJT-504072	65	40	50	70	6

去毛刺|倒角|浮动铰刀柄|滚压刀

型号	尺寸（mm）							加工直径调整范围内	中心高调整范围内
型号	D	D1	D2	L	L1	L2	L3	加工直径调整范围内	中心高调整范围内
2025-43	20	25	41	47	6	11	33	+0.4~-0.2	+0.2~-0.15
2532-48	25	32	49	60	6	11	45	+0.4~-0.2	+0.2~-0.15
3240-53	32	40	58	65	6	11	50	+0.4~-0.2	+0.2~-0.15
4050-63	40	50	68	76	6	11	61	+0.4~-0.2	+0.2~-0.2

使用说明

铣削应用

在铣床加工时，如需改变正常加工孔的直径，可调整偏心套的轴向位置

去毛刺|倒角|浮动铰刀柄|滚压刀

车床应用

车床加工使用时，偏心套可调整钻头轴向与主轴轴向重合位置

P2%PK8XE_%%DY)8ESZ0$ZWM

SAVANT舍弃式钻头分为快速钻、VMD大钻头、铲钻及剑齿钻。为您提高生产效率降低生产成本！
根据您不同的孔径、公差、光洁度要求，我们帮你选用合适的快速钻、VMD大钻头、铲钻及剑齿钻。

SAVANTEC fast drill

fast guidance

product demonstration

feedback
